Satlink Satfinder DVBS2/DVBT2 combo

Satlink Satfinder DVBS2/DVBT2 combo
Varenr.
1228
Lager
På lager
Pris
kr 3 990,00
Før
kr 4 990,00

Kvantumsrabatt

Loading...
  • Satlink Satfinder DVBS2/DVBT2 combo
  • ws6979-2-800x600
  • WS6979-3-800x600
  • ws6979-4,-800x600
  • ws6979-800x600
  • ws69792-800x600

Super sat-finder for både parabol og bakkenett (DVB-S2 + DVB-T2)

DVB-S/S2 & DVB-T/T2 Combo, HD, with Spectrum

Full Functions All in One Digital LCD Satellite and Terrestrial Aerial (DVB-S2/S & DVB-T2/T) HD Finder Meter with Spectrum Analyzer Plus Download And Watch All FTA Digital Satellite and Freeview Aerial Channels on Colour LCD Screen.

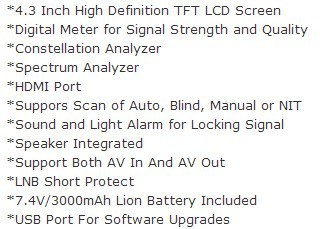

Features

6979Feature

Specification

TRANSMISSION STANDARDS
DVB-S2/S, DVB-T/T2  Fully Compliant
SATELLITE INPUT/DEMODULATION
Connector Type  F Type
Input Frequency  950 to 2150 MHz
Signal Input Level -65 to ~ 25 dBm
Band Switch Control  22KHz
LNB Supply  13V/18V, Imax 400mA
Demodulation Type  QPSK,8PSK,16APSK
Symbol Rate  2<Rs<45Mband(SCPC/MCPC)
DVB-T/T2 INPUT/DEMODULATION
Connector Type  FEMALE Type
Input Frequency  48 to 862 MHz
Signal Input Level -79.5dBm (MAX)
ANT Supply  5V, 12V/17V Imax 100mA
Demodulation Type  QPSK,16QAM.64QAM,256QAM
LCD FEATURES
LCD Type  TFT TRANSMISSIVE
Number of Dots  480(RGB) x272
Active area (WxH)  95.04x53.86 mm2
AV output interface
Connector Type  3.5 mm jack
Video Output  CVBS,
Audio output  Stereo Audio L/R output
HDMI output connecter
Format  HDMI 1.3a
AV input interface
Connector Type  3.5 mm jack
Video input  CVBS,
Audio input  Stereo Audio L/R input
AUDIO/VIDEO PROCESSING
Video decompression  MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding
Resolving rate  PAL25 frame@720*576,NTSC30 frame@720*480,
Signal compatibility  Support conversion for different video formats
Video Format  4:3,16:9,By Pan & Scan and Letter Box conversion
Audio decompression  MPEG-1 Layer I/II, MPEG-2 Layer I/II,
Audio output mode  Stereo, Mono,R/L
DATASERVICEPORT
Connector  USB
Data protocol  USB2.0 interface
File management system  NTFS,FAT32,FAT16
file format  wma,mp3,mp4,avi,jpg,jpeg,bmp,img
MICROPROCESSOR
Microprocessor  NOVATEK
Clock Frequency  500MHz
SDRAM Memory  1Gbit DDR3
POWER SUPPLY
Li-ion Battery  7.4V/3000mAh (The meter behind labeling shall prevail)
Adapter  OUTPUT: DC12V/1.5A, INTUPT: 100-240VAC 50/60Hz (will be subject to actual configuration)
Power consumption  Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H)  125x205x45(mm)
